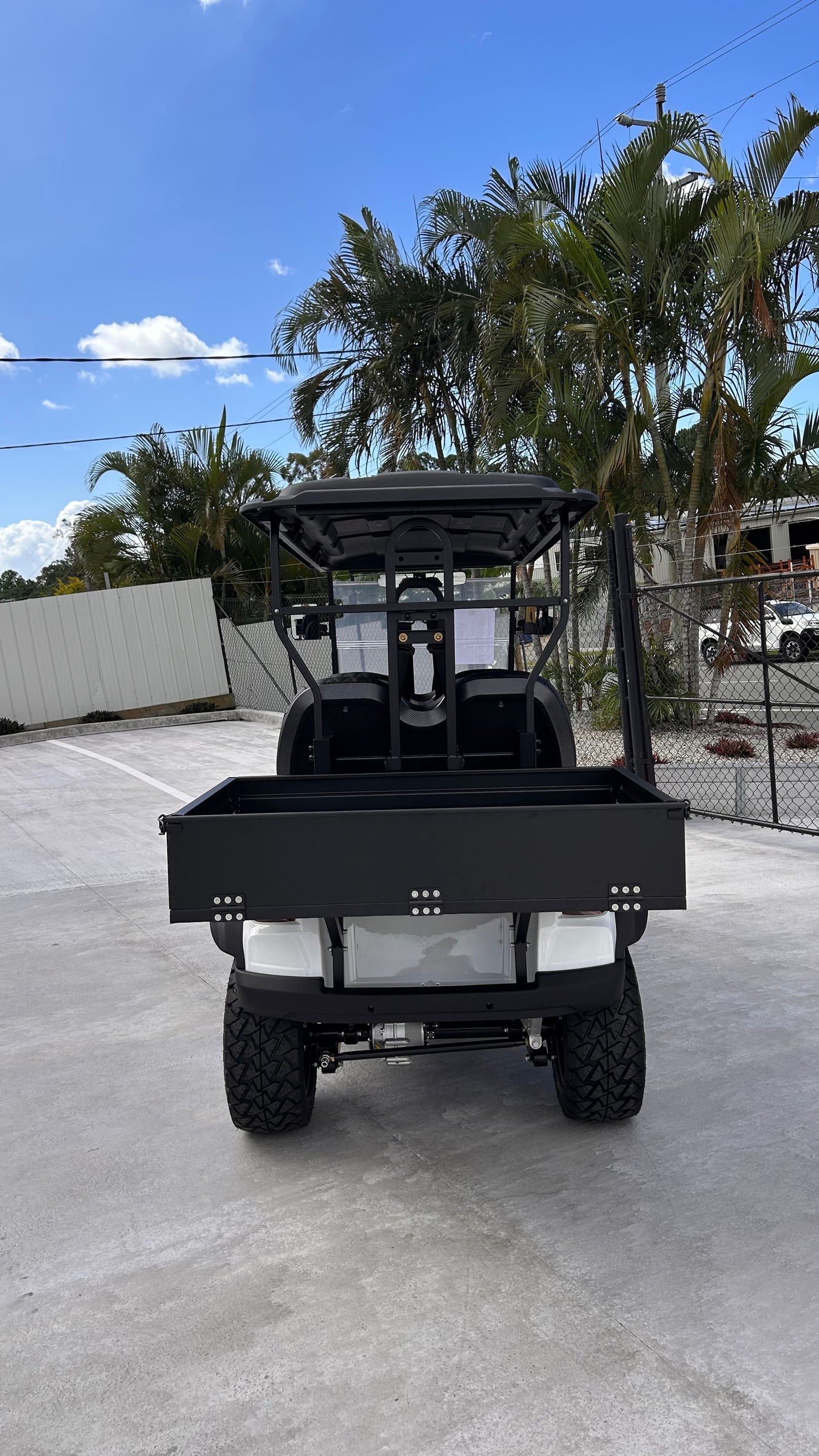

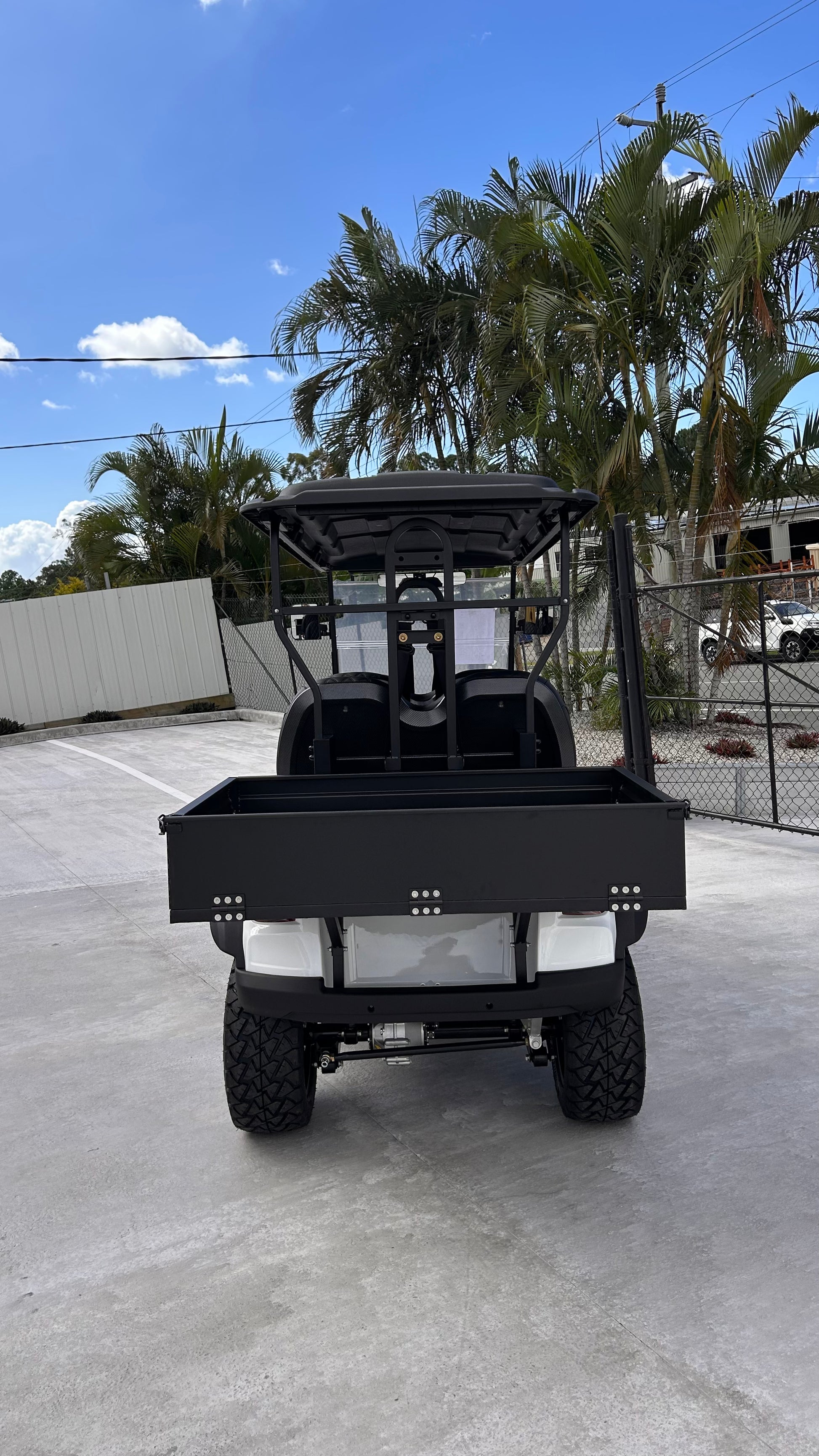

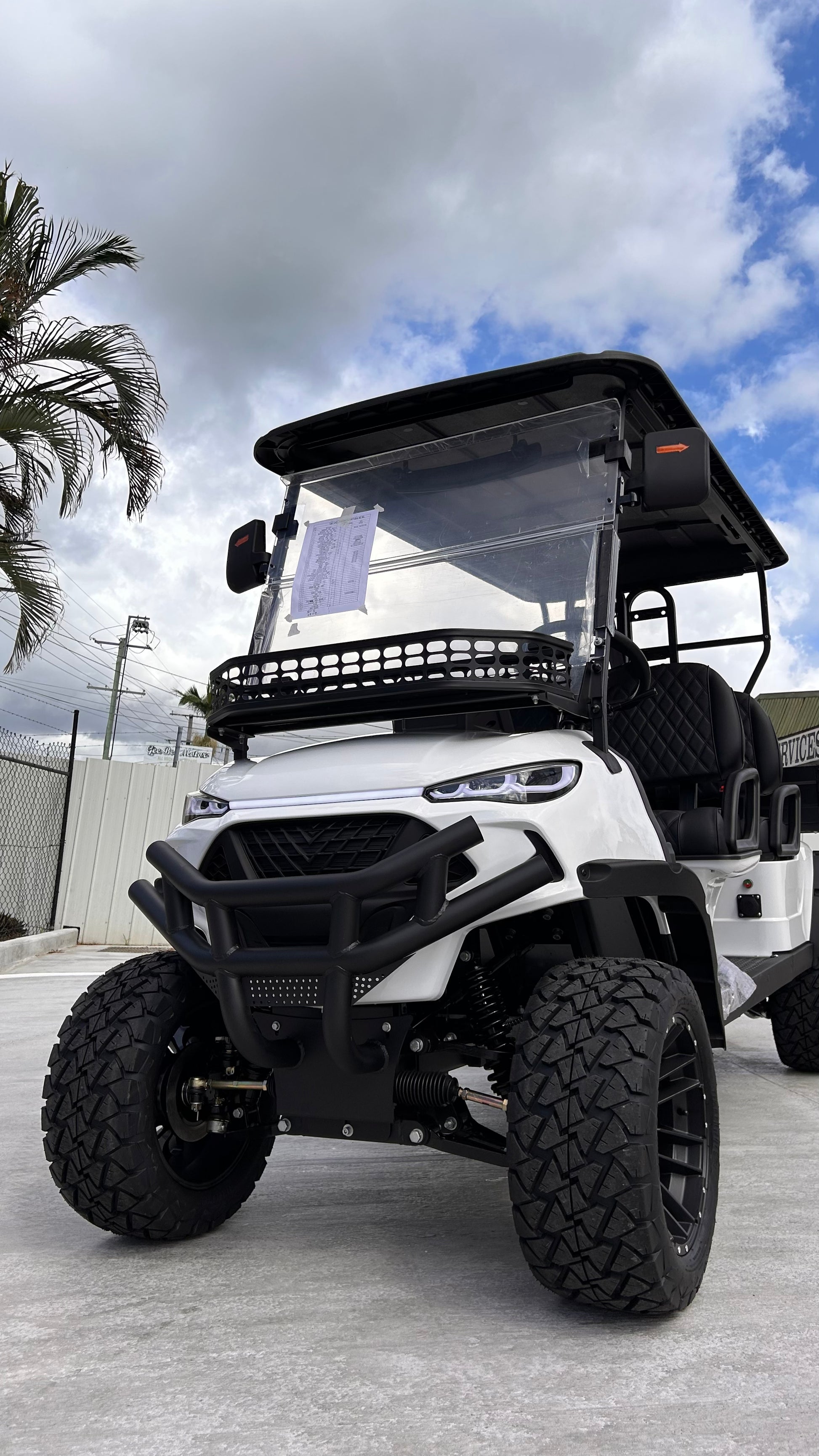

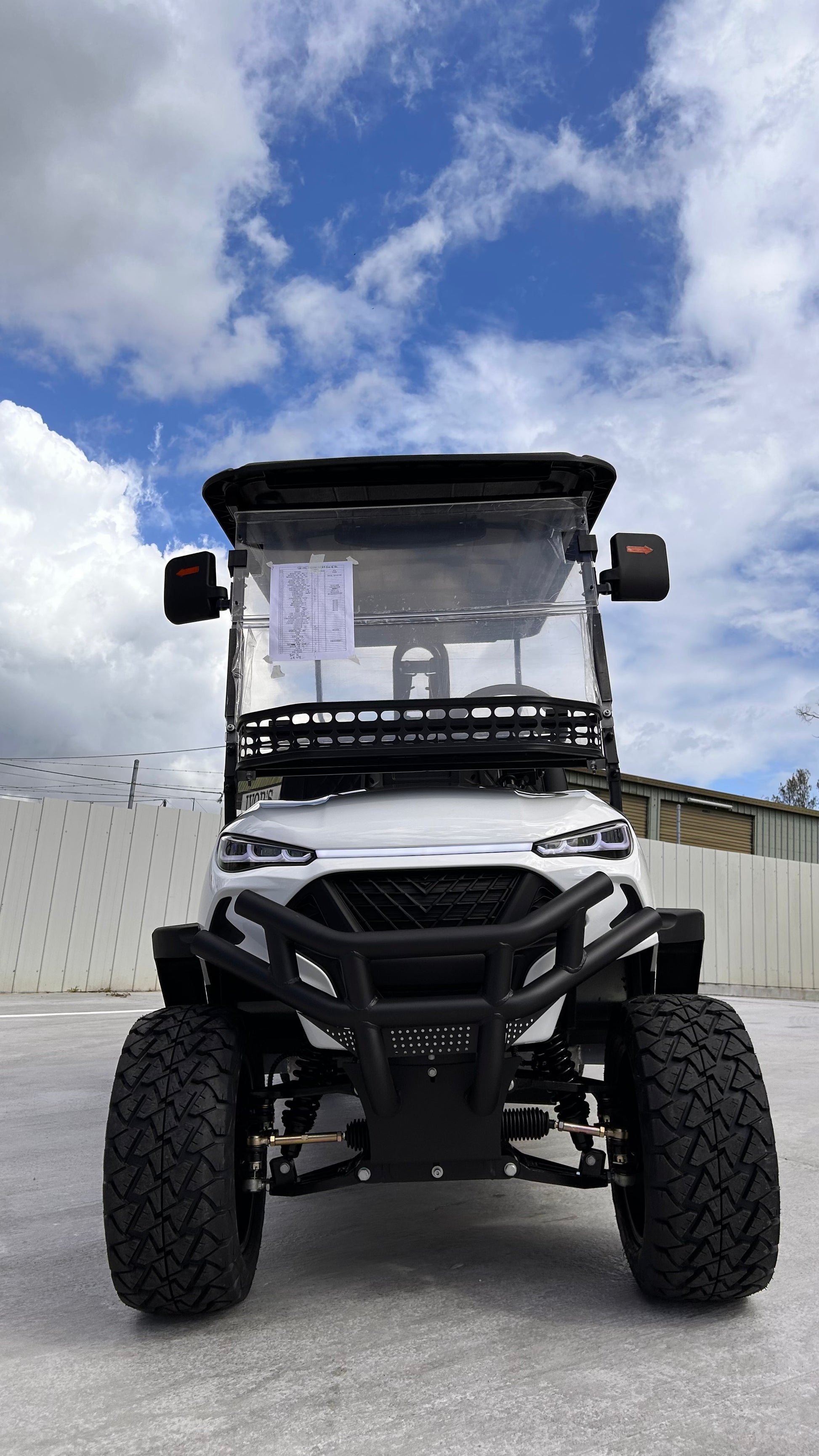

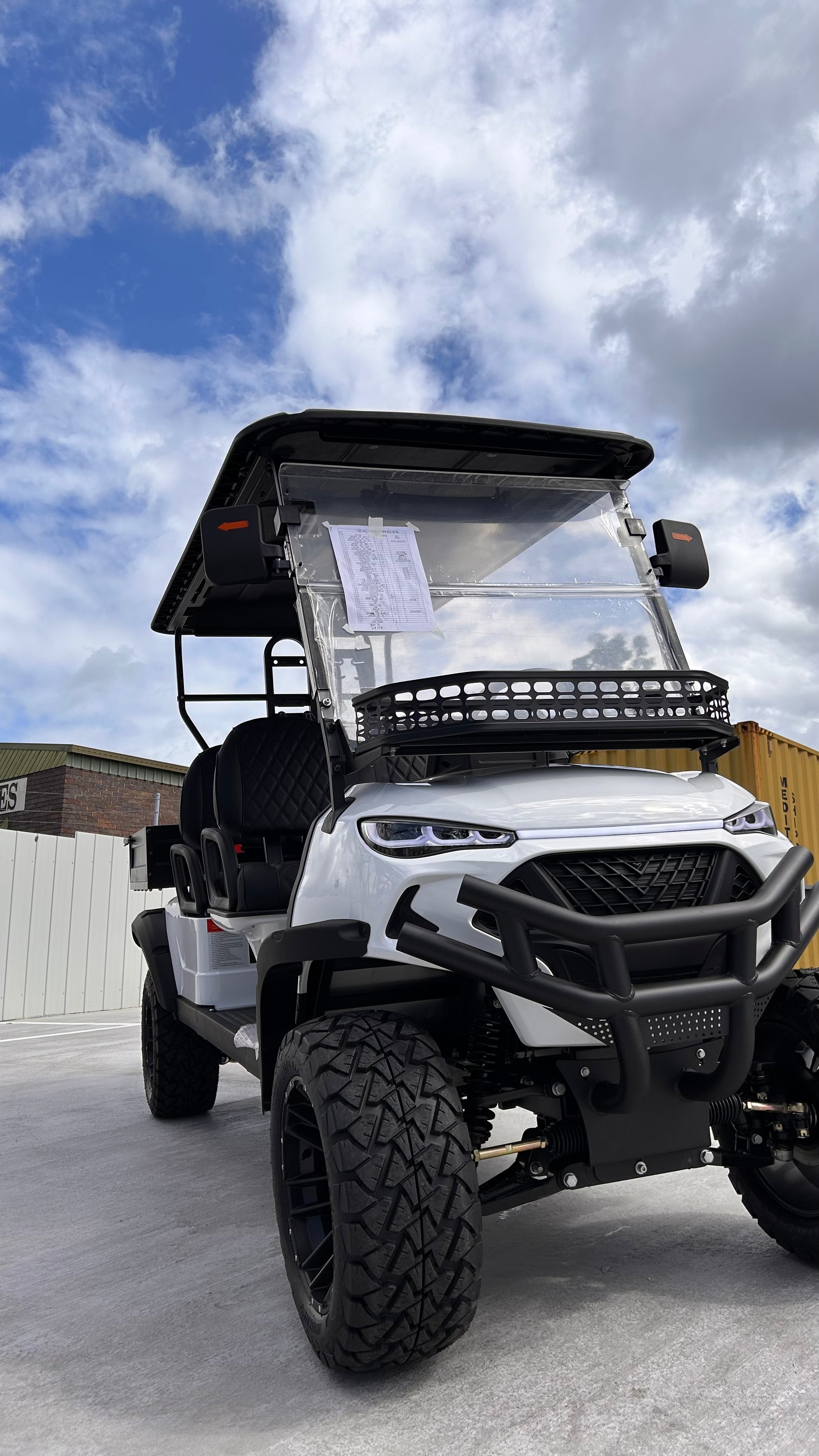

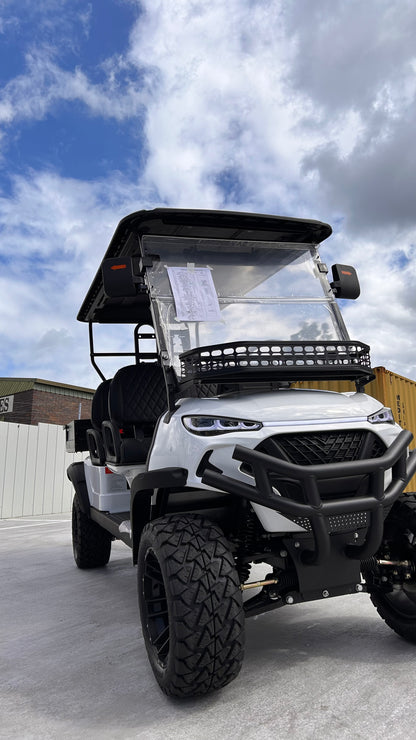

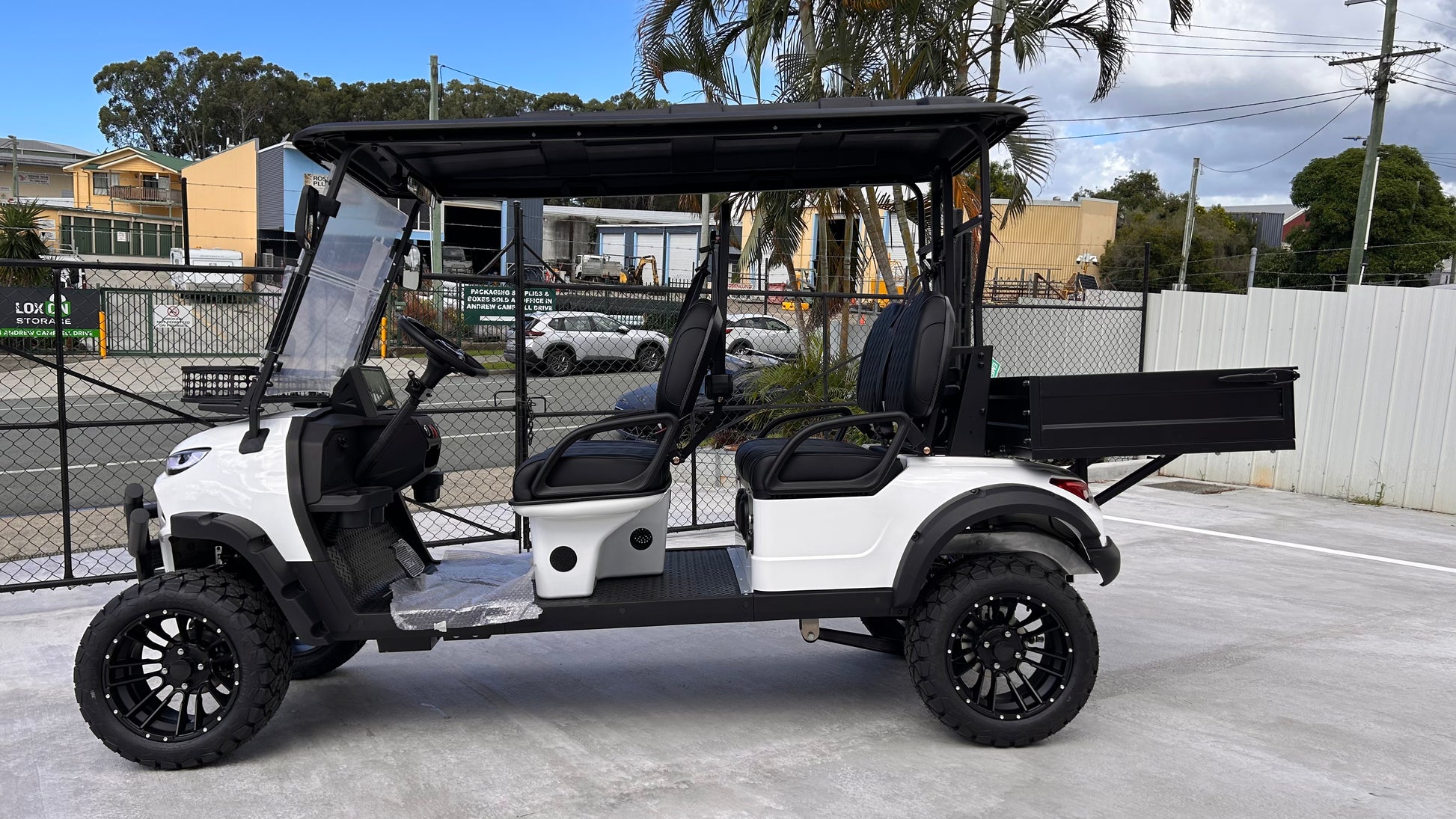

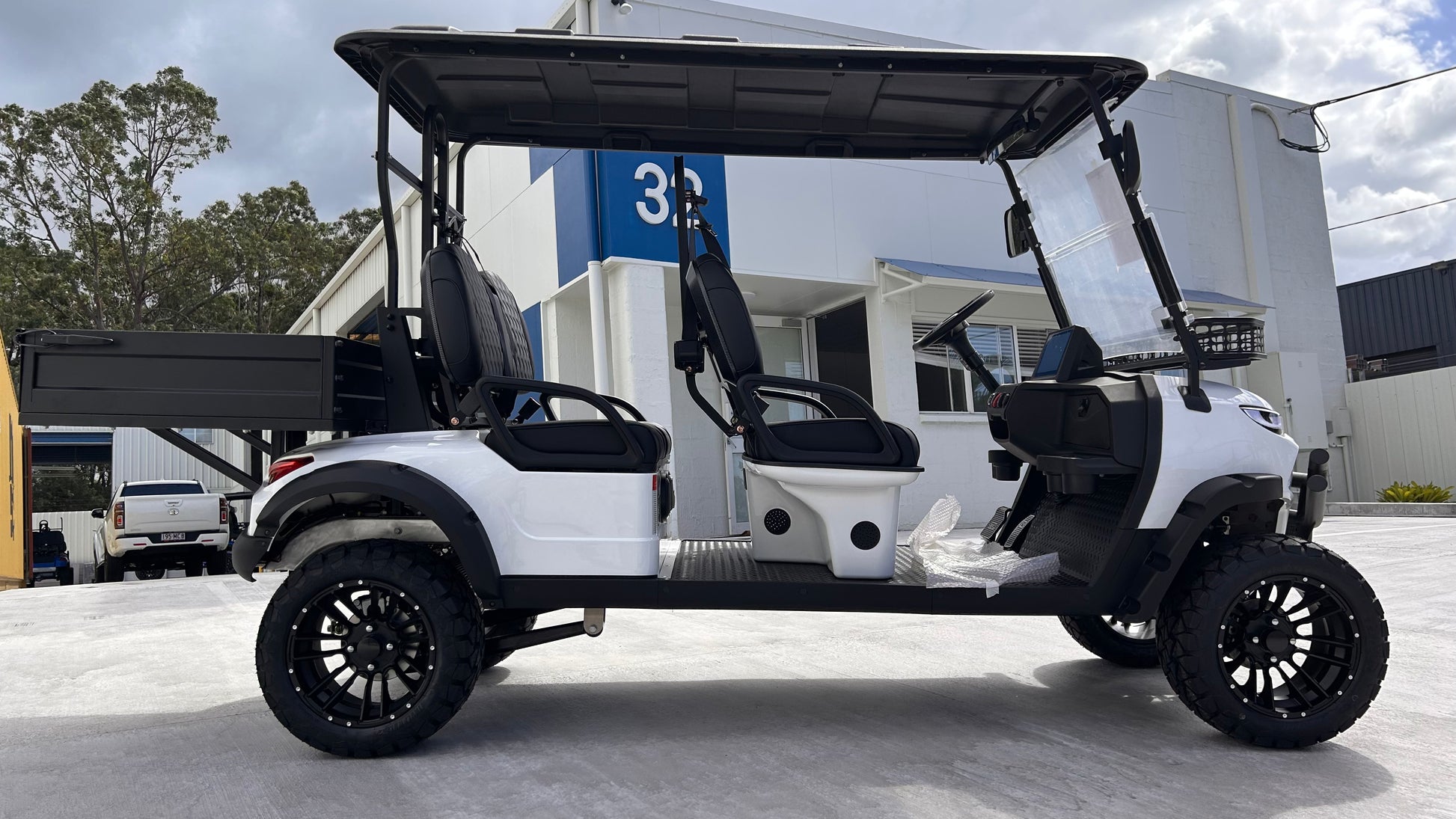

4-Seater Buggy with Short Tray (JSH0709)

The JSH0709 combines passenger space and cargo capacity, making it a versatile cart for both transport and work. With four seats and a strong rear tray, it’s built for golf farms, resorts, and property maintenance.

• Battery: 72V 100Ah (LiFePO4)
• Motor: 7.5KW AC Motor
• Controller: Curtis 400A
• Range: ≥ 110 km (flat road)
• Onboard Charger: 2kW (~4 hr full charge)
• Suspension:
• Front: Double Wishbone Independent (Double-A)
• Rear: Trailing Arm Non-Independent
• Brakes: 4-wheel hydraulic disc brakes + EPB
• Steering: Dual-output rack & pinion (EPS available)
• Dimensions (L×W×H): 3650 × 1340 × 2010 mm
• Seating Capacity: 4
• Curb Weight: 570 kg
• Tray Size: 800 × 1200 × 250 mm | Tray Capacity: 200 kg
• Wheelbase: 2435 mm | Turning Circle: 6 m
• Tyres/Wheels: 14” Alloy, 205/35-12 road tyre
• Body/Chassis: Carbon steel + polypropylene body, aluminium chassis
• Interior: Ergonomic leather seats with headrests, 4 cup holders
• Features: 10.1” Touch LCD, lockable compartments, audio system, LED lights, mirrors, horn
• Price (AUD): $18,900
• ✅ Can be road registered | ✅ Great for resorts, golf farms, property maintenance, caravan parks
